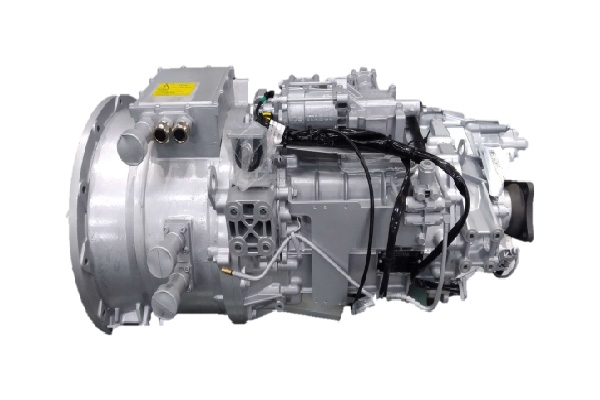

HW51508HA

Hybrid transmissionHW51508HA

1、Light truck P2 hybrid transmission
2、Suitable for 9.5T/7.5T plug-in hybrid light trucks, with low cost for 2.3/2.5L light engines
3、Balances power and economy perfectly
4、 Simple structure, strong adaptability, and high reliability;

Main parameters

Gear 1 2 3 4 5 6 7 8 R1 R2
Speed ratio 9.03 5.90 4.34  3.31 2.08 1.36  1.00  0.76  8.52 1.96
Input maximum torque 510Nm
Input maximum revolution 3200rpm
Motor rated/peak power 40kW/80kW
Motor rated/peak torque 200Nm/400Nm
#
