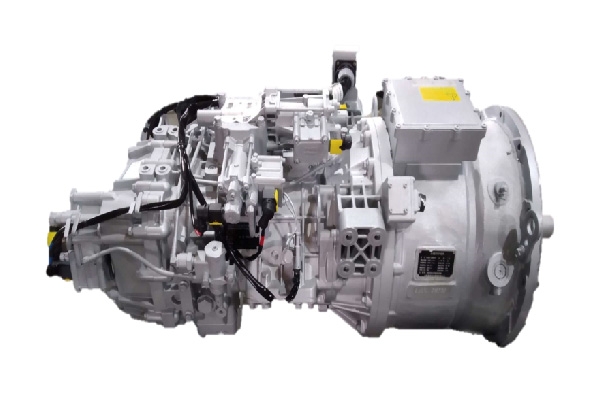

Hybrid transmissionHW95510HA
1、Light truck P2 hybrid transmission
2、Suitable for 12T plug-in hybrid light trucks, with 2.3/2.5/3L and other light engines
3、Balances power and economy perfectly.
4、Simple structure, strong adaptability, and high reliability;
Main parameters
| Gear | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | R1 | R2 |
| Speed ratio | 9.10 | 6.05 | 4.20 | 3.18 | 2.17 | 1.44 | 1.00 | 0.76 | 8.34 | 1.99 |
| Input torque | 950Nm | |||||||||
| Input revolution | 3200rpm | |||||||||
| Notes Oil quantity | 6L | |||||||||
| Motor rated/peak power | 40kW/80kW | |||||||||
| Motor rated/peak torque | 200Nm/400Nm | |||||||||
